Audio System :
The scope of this project was to acoustically survey the buildings and especially the main prayer hall to determine the possible echo and structural interference that would adversely affect the quality of sound heard by the congregation. The audio system incorporates high end audio equipment and custom designed control systems to deliver high quality and highly available audio system that is user friendly and delivers concert quality sound system.
This audio system is designed to support 48 microphones and over 100 speakers which are mounted at strategic locations to provide crystal clear audio coverage for all of the buildings and hallways without echo and distortion. For the ease of the operators the sound level for the main hall has been preset for 3 levels of congregation size: less than 500, between 500 and 3000 and over 3000 people.
Four audio mixers,15 audio power amplifiers and the custom designed audio source selector form the basis for this system. The system also supports multiple audio recording and playback devices and servers.

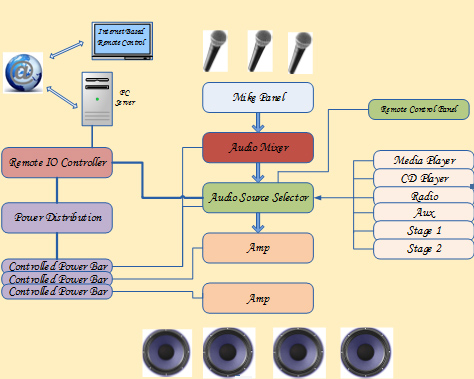

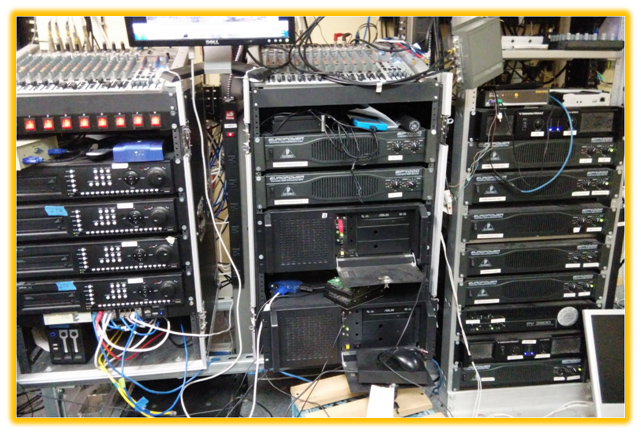

A simplified system diagram and the pictures of the actual installation of the audio system are shown below.

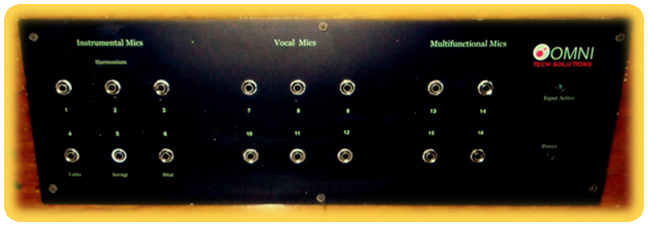

Wall / Platform Mountable Microphone Panel :
This is a custom designed panel that can be mounted on a wall or on a platform. It is custom designed to connect from a single microphone to as many as 48 microphones. The panel provides impedance matching for various types of microphones.

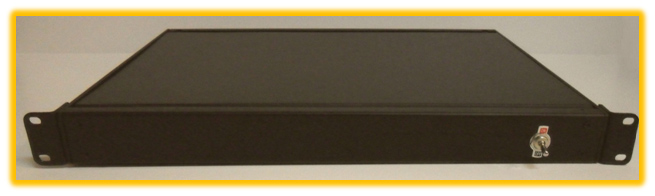

Audio Source Selector :
The Audio Source Selector is a custom designed unit providing the capability to switch the input audio signals. The Audio Source Selector has the following features:
Support up to 48 microphones and over 100 speakers spanning multiple buildings
Custom designed for 8 to 24 Stereo RCA audio inputs
Two volume controlled output
Two uncontrolled volume outputs
Supports Web Based Remote control for Channel selection and volume control
Interface for custom designed Wall mountable remote control panel

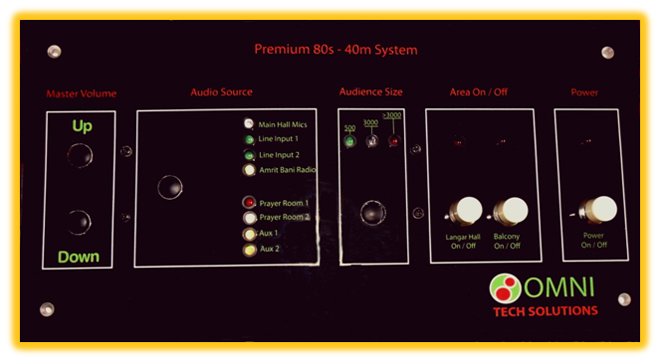

Wall Mountable Audio Control Panel :
Custom designed wall mountable Audio control panel provides volume control as well as audio source selection. This panel connects to the Audio Source Selector. Volume level preselects for less than 500, between 500 and 3000, and greater than 3000 audience size.
Web Based Remote Control :
The Web Based Remote Control unit provide the capabilities to control up to 48 inputs and outputs. Units can be stacked to double the input / output controls. The remote control connects to a computer server via 10/100 BaseT Ethernet connection. A web based application provides control for the Volume / Source Selection and IO controls.

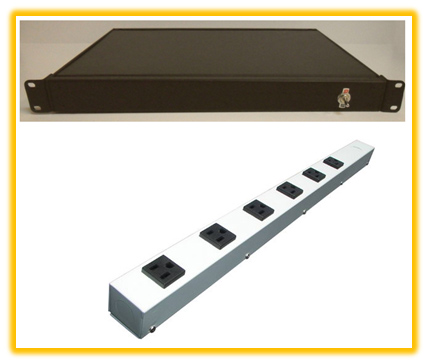

Power Distribution Unit :
The Power Distribution Unit (PDU)provides a means to control the power going to each of the devices. The PDU can support up to eight individual power bars, each of which can be turned ON and OFF via a manual switch or via web based remote control.

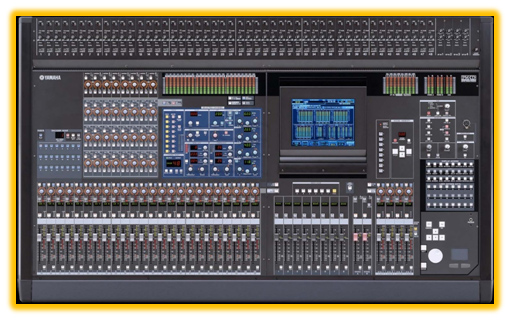

Audio Mixer :
We can integrate any commercially available audio mixer into the audio system design.

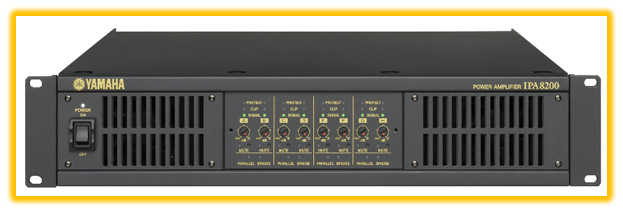

Audio Amps :
We can integrate any commercially available audio amplifier into the audio system design.

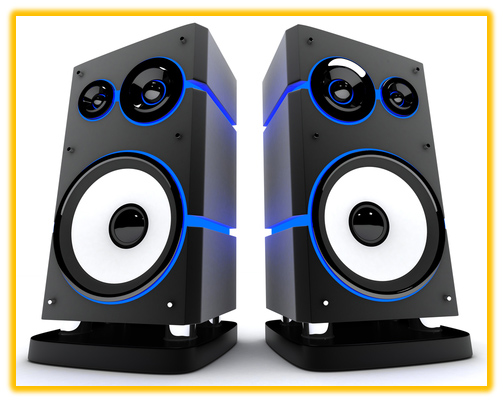

Speakers :
We can integrate all commercially available speaker into the audio system design.
Video System :
The video system at the San Jose Temple is designed to provide the following capabilities
8 High quality remote controlled full HD resolution cameras with power zoom and TPZ controls are mounted at strategic locations to record kirtans, presentations and weddings. All 8 camera feeds are recorded in full HD on the media servers

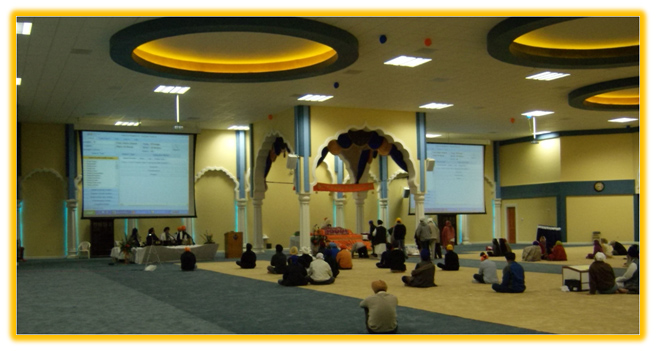

Two high lumens projectors are used to display the camera feeds and multimedia playback on two 18ft by 15ft screens in the main hall
Three additional LCD monitors are mounted at other locations to provide viewing capabilities
With the use of the in house cameras, outside cameras are not required in the main hall and thus providing interference free venue for weddings and other gatherings. Eliminating tangled wires and obstructions caused by outside camera crews.
Three channels of video streaming are available to be broadcast over the internet. These video streams are used to broadcast live events and weddings to private audiences as well as general public. Live video streaming is often used to broadcast weddings to relatives in India in real time
Security System :
The security system at the San Jose Temple consist of over 92 security camera powered by POE. Each video feed is recorded continuously on the security server and kept for up to 45 days.

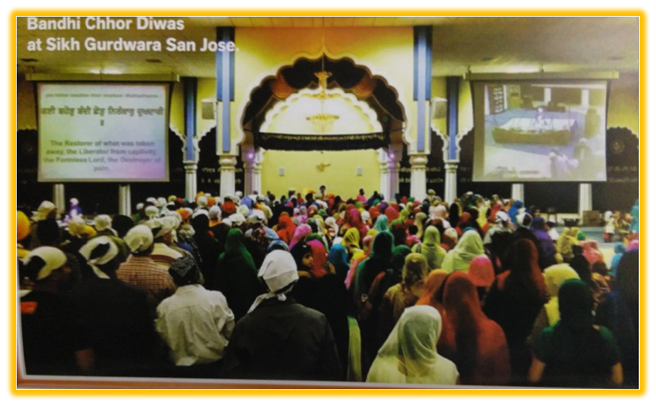

San Jose Temple Pictures :
|
