This document describes the
functional description of the Emergency Alert Security System and
lists system components.
Functional
Description
The alert system is comprised of a
control box, station, and an IOS application.
The function of the system is to
override normal audio program and play an emergency audio alarm
signal through all speakers at a given facility when it is activated.
The emergency audio alarm signal is a combination of an acoustic
siren and an announcement recorded by the user who activates the
system from one of the stations located around the facility. Key
parameters, such as how long the siren plays, how long the person is
given to record the announcement, or the length of time before the
system is automatically deactivated are controlled through the
android application.
The system can be activated by
pushing the panic button at any station or through the android
application. Once activated, a siren will play through all speakers
for four seconds. After this, the user will speak into the microphone
at any of the stations and this announcement will be played live
through all speakers. The microphone and panic button will be in an
enclosed box mounted on the wall with a breakable glass door. Once
they have finished speaking the announcement, the audio alarm signal
has been created. This audio alarm signal switches between the siren
and the announcement. This will be played through all speakers until
the system is deactivated. Once the system is activated, there are
two methods of deactivation. The system will be deactivated
automatically if the audio has played for more than the programmed
interval length of time set through the app. The system can also be
deactivated manually by an authorized user through the system app.
While the system is activated, a red LED will be lit at all stations
and the control box. This LED will turn off once the system is
deactivated.
There are three system components:
Control BoxStation BoxManager’s App
All three
components are needed for the system to function. The station box and
control box are hardware devices obtained from Omnitech Solutions in
Sunnyvale, CA. The next pages of this document provide an overview of
the system components.
System
Components

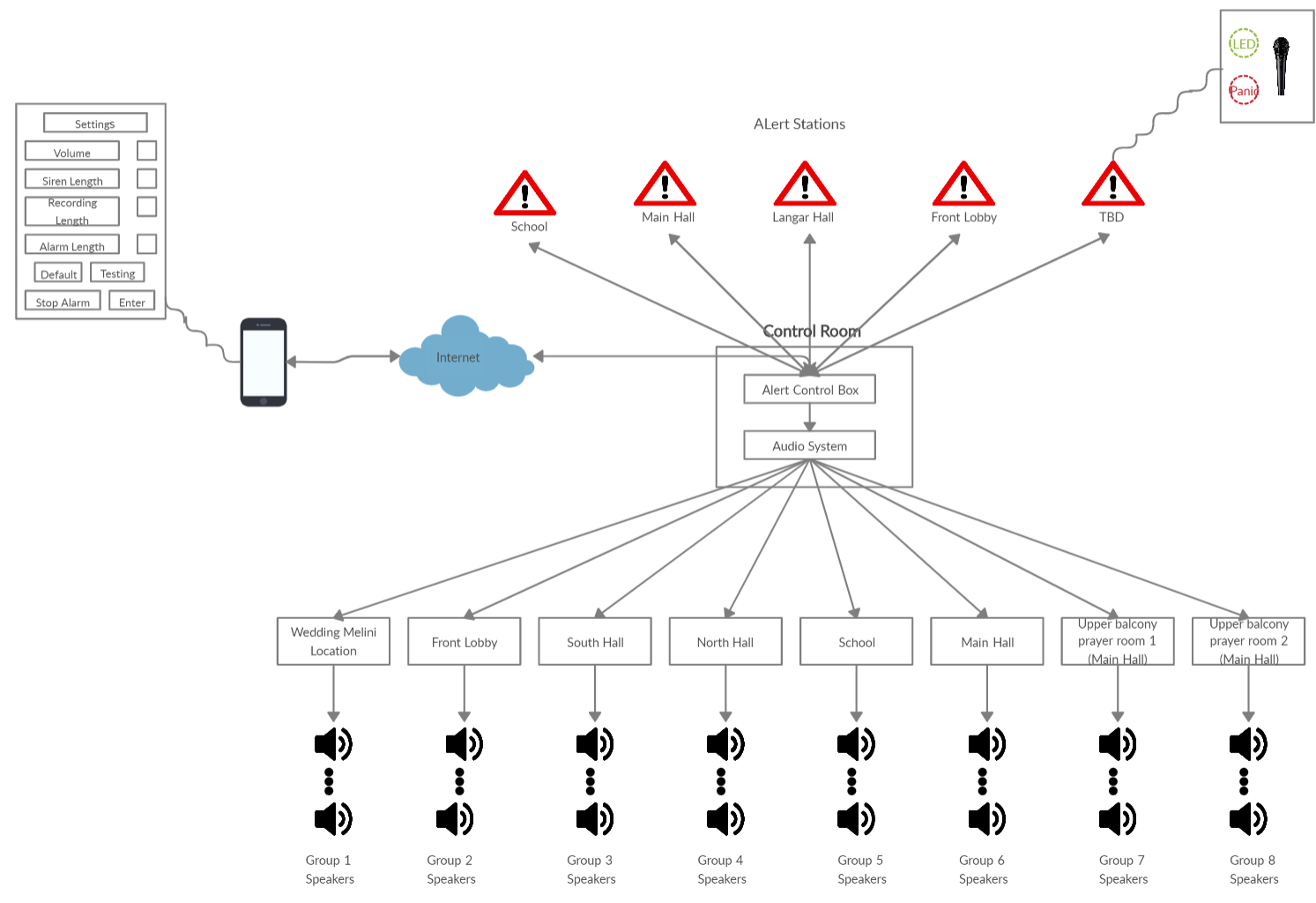

Each station
has a panic button to activate the alarm, LED to indicate activation,
and a microphone to record the announcement. These stations
communicate directly to the control box which is connected to
different speaker groups around the facility. The IOS application
communicates with the control box through the internet as well.
Manager’s
App

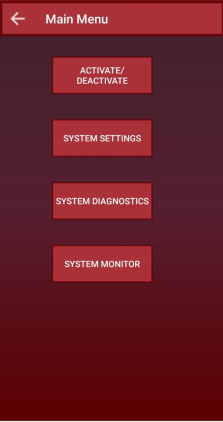

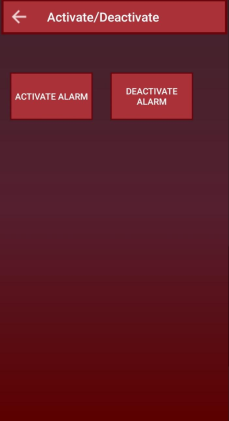

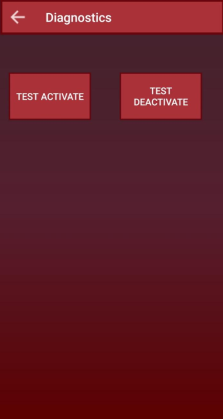

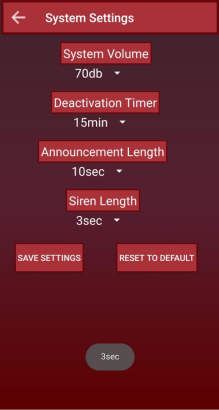

Features:
Password
ProtectedActivate
SystemDeactivate
SystemAdjust
System Settings and ParametersMonitor
SystemView
Security Camera Live Feed
App
Screens:
Alert
Station

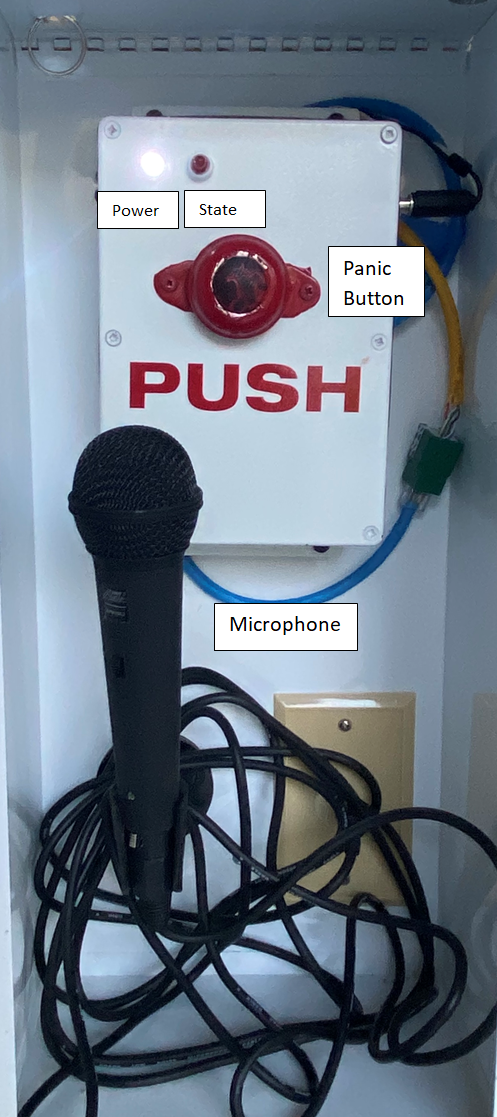

Features:
Indoor
and outdoor mounting
Highly
Visible Panic Button
Microphone
to make announcement
Video
Camera in view of station
Bright
lights to indicate status of system
Back-up
power available
Allows
any individual to activate system
Process
to Activate System from Alert Station:
Break
Glass EnclosureHold
down panic button until red light turns on at each station
(approximately 2 seconds)Pick
up the Microphone. Siren will play immediately for four seconds
after system is activated. After the siren stops, the user may make
the announcement, which will be played live at all speakers and is
then looped with the sirenProceed
to safe location
Light
Indication:
Power
The
white light on the box indicates power. If this light is on, the
system is powered. If this light is off, the system is not powered.
System
State
The
red light on the box indicates the state of the system. If the light
is on, the system is activated. If the light is off, the system is
not activated and is idle.

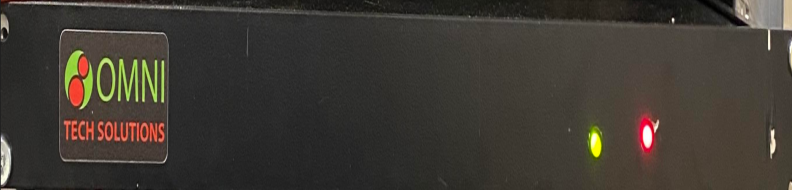

Control
Box
Overrides
normal audio with siren and announcementSupports
up to 100 Alert StationsSupports
8 output speaker groupsSupports
8 audio input linesBack-up
power available in case of power outageClosed
System – Removing possibility of hacking and tampering
Installation:
System
is hardwired from the control unit to the alert stations in a star
topology
Control
Box is connected to existing public address speakers in existing
speaker groups and to the new speakers installed with the EAS to
cover all areas of a building or multi-building campus
Network
Connections:
2
public Ethernet connections1
private local connection1
RCA connection
